MQB Chassis Revo Engine Mounts – RV581M500103

£120.00£420.24

The Revo mount upgrade kit is designed to improve the driving experience of your vehicle.

Clear

REVO ENGINE MOUNTS

More power results in more movement during aggressive acceleration. The stock engine mounts, designed to favour comfort over performance, fail to manage axle hop and torque effectively requiring you to ease off in order to gain traction. Designed to significantly reduce this engine movement, Revo engine mounts use Powerflex bushings to minimise noise, vibration and harshness levels (NVH) while drastically improving traction and acceleration. The engine, transmission and torque mounts have been CAD designed to offer OE quality fitment with the performance benefits and quality of a Revo product.

KEY FEATURES

  • Dramatically reduce engine movement
  • Improved acceleration and torque
  • Powerflex polyurethane bushings
  • Comes with removal tool for torque mount

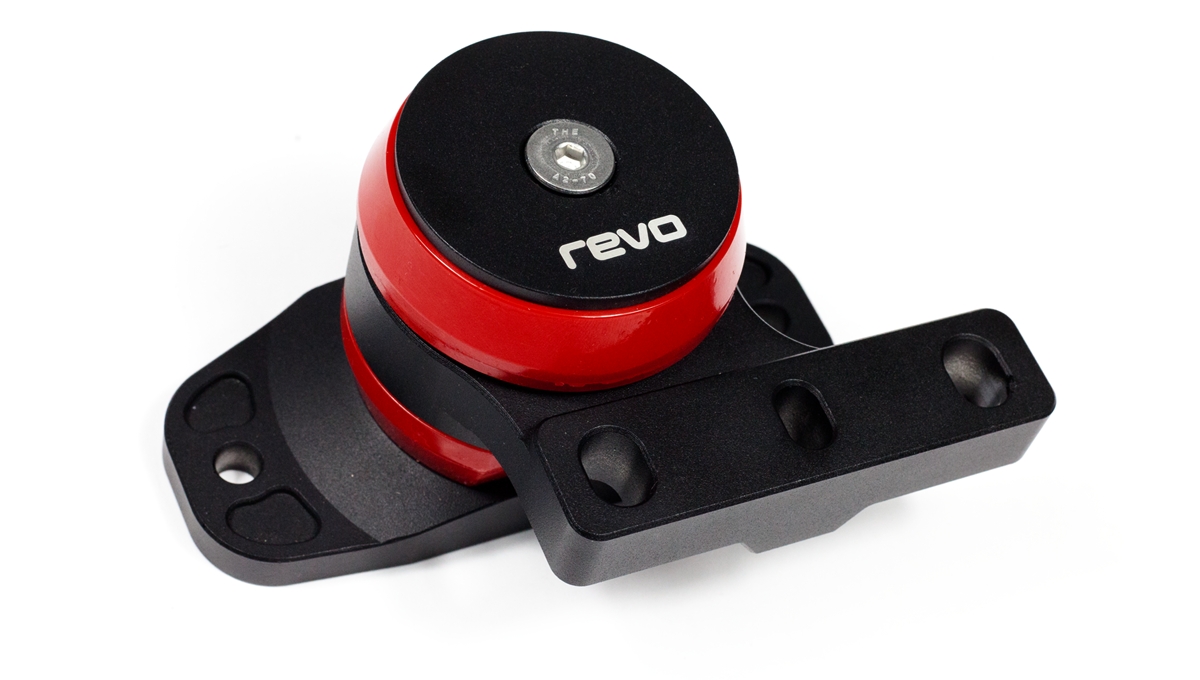

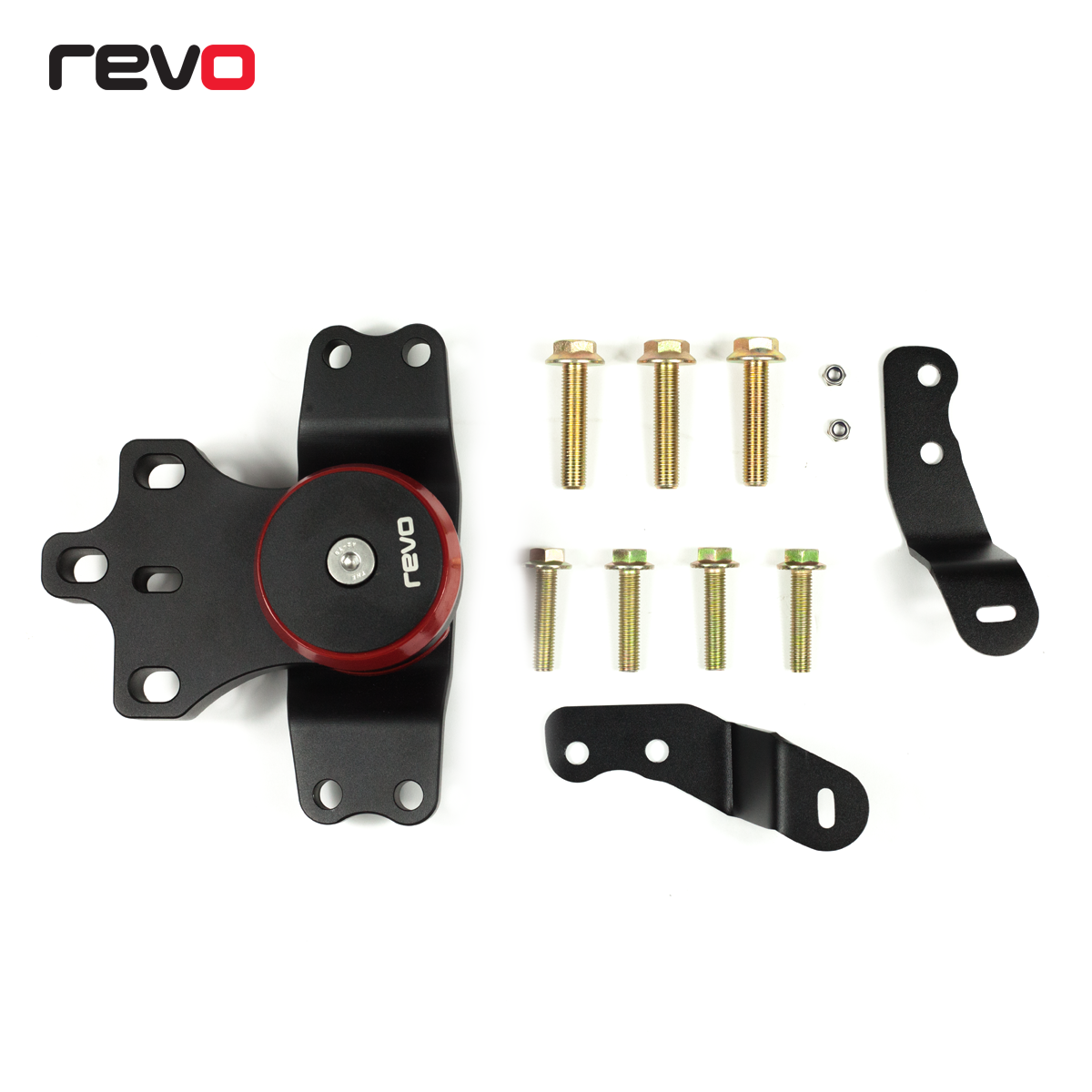

ENGINE & TRANSMISSION MOUNT


The primary design goal of the engine and transmission mounts was to provide a management system for engine movement during vehicle operation with increased power/torque, in order to retain vehicle acceleration and tyre contact during aggressive driving. The aforementioned solution must also continue to dissipate the NVH naturally created by the drivetrain. To accomplish this, the bushing design of past Revo engine mounts was retained in the MQB engine and transmission mounts, allowing Revo engineers to focus their efforts on bushing stiffness/type to accomplish the task.

TORQUE MOUNT


Arguably the most vital engine mount upgrade to consider, testing highlighted that the engines stock lower torque mount allowed a substantial amount of engine movement to occur. Although some improvements were noted during testing of an insert style upgrade designed to stiffen the standard mount, there was a significant increase in NVH felt in the cabin. This was dramatically reduced when completely replaced with the Revo polyurethane torque mount and also improved acceleration. Fitting the mount does not require the sub-frame to be removed, reducing installation time and the need for axle re-alignment. A Revo installation tool is included to make removal of the OEM mount and installation of the replacement as quick and easy as possible.

MATERIALS, MANUFACTURING & FITMENT


Effective design and fitment plays a principal role in managing engine movement to ensure optimal acceleration and tyre contact with the road while dissipating NVH experienced from the drivetrain. Each component has been designed using CAD technology to ensure precision fitment and is supplied with class 12.9 hardware to replace the standard fixings. To ensure optimum strength and durability, brackets and housings are CNC machined from 6061-billet aluminium and finished with an anodised coating to protect from heat and corrosion.

POWERFLEX BUSHINGS


Powerflex utilises a unique formula of polyurethane, custom designed to ensure optimum fitment in the machined housings. After testing of various amounts of compliance, our engineers were able to fine-tune the final bush to achieve a balance between performance and comfort. Polyurethane is also resistant to oil, fuel unlike the rubber used in the OEM mount which can lead to perishing and failure. Our specified durometers provide a stiffer mount to limit the engine movement without compromising on NVH (Noise Vibration Harshness) levels in the process.

FITMENT NOTES


  • Lower torque mount kit includes torque mount and Installation Tool
  • Full kit includes engine mount, transmission mount, torque mount and torque mount installation tool
  • Performance Engines mounts will produce more vibrations at low RPM then softer OEM Mounts.




VEHICLE APPLICATIONS


Manufacturer Model Engine Year
Audi A3 8V 2.0 TSI 2012 onwards
Audi S3 8V 2.0 TSI 2012 onwards
Audi TT MK3 2.0 TSI 2014 onwards
Audi TTS MK3 2.0 TSI 2014 onwards
Seat Leon MK3 2.0 TSI 2012 onwards
Skoda Octavia 2.0 TSI 2013 onwards
VW Golf GTi 2.0 TSI 2012 onwards
VW Golf R 2.0 TSI 2012 onwards
Revo Mounts

Torque Mount Insert With Fitting Tool Kit, Engine Mount Only, Transmission Mount Only, Full Set
